Announcing Instaboot: Instant Cold Starts for Serverless Apps

syrusakbary avatar
syrusakbary
Syrus Akbary

Founder & CEO

edge

June 20, 2024

arrowBack to articles
Post cover image

Today we are extremely excited to launch Instaboot (beta): an unique technology based on WebAssembly that reduces cold starts of serverless apps up to 100-200x, greatly simplifying the maintainance and cost of running apps at scale.

If a serverless website is not accessed frequently, the provider will normally shut it down after a period of inactivity and then start it up again to serve the next request.

Cold starts can degrade significantly the experience of websites and APIs that are not accessed frequently. Which usually implies:

  • Cost: purchasing a plan so your app never becomes cold
  • Maintenance: doing requests each 5 minutes to keep the site alive, or to put a CDN on top (such as Cloudflare) to cache the results of your dynamic website.

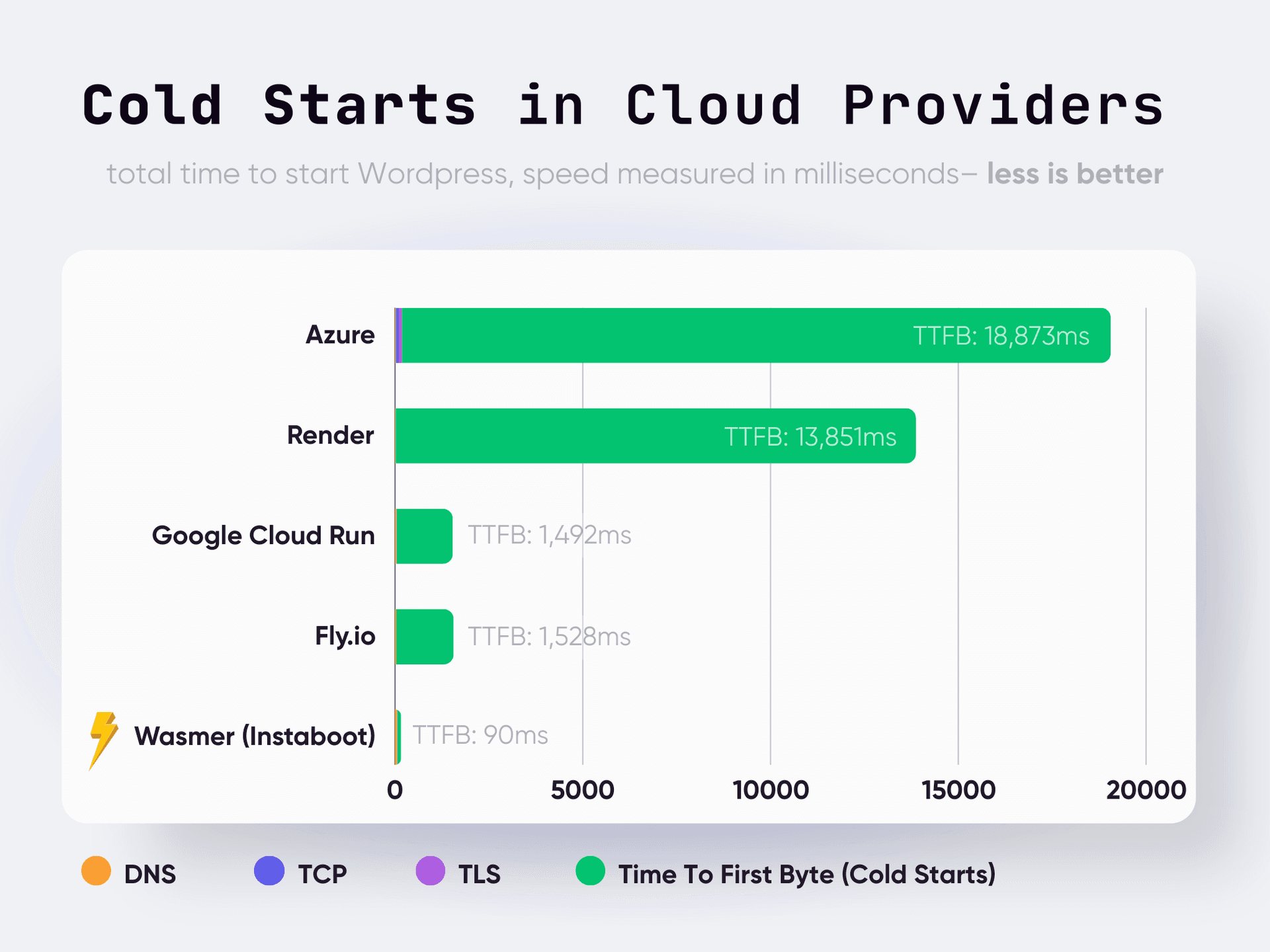

But are cold starts really that bad? Here's the time that takes to start a Wordpress app in each of the providers:

Cold starts with Instaboot

In our benchmarks, the startup time of WordPress in Wasmer Edge has improved up to 178x thanks to using Instaboot (WordPress demos: Wasmer Edge + Instaboot, Fly.io, Google Cloud, Azure).

With Wasmer Edge + Instaboot, you no longer need to worry about extra costs for expensive plans that keep the website continously warm, or maintaining a CDN on top of your dynamic website.

Instaboot marks the beginning of unique features that are only possible with a WebAssembly sandboxed environment, that native providers will struggle to replicate.

Why are Cold Starts slow?

Each time you start a program from scratch, many things occur only on application startup.

For example, interpreted languages will parse the files that the application uses, then precompile them into bytecode, perhaps then do certain optimization on that bytecode, and then either interpret the bytecode or compile it (JITs).

PHP has opcache, JavaScript VMs have their own bytecode format, Python will build the __pycache__ and generate pyc files to save time for the next runs, and so on…

Because of that, cold starts are mainly a problem in interpreted and JITted languages: JS, Python, and PHP; but are usually less of a problem in compiled ones: C, Rust, or Go.

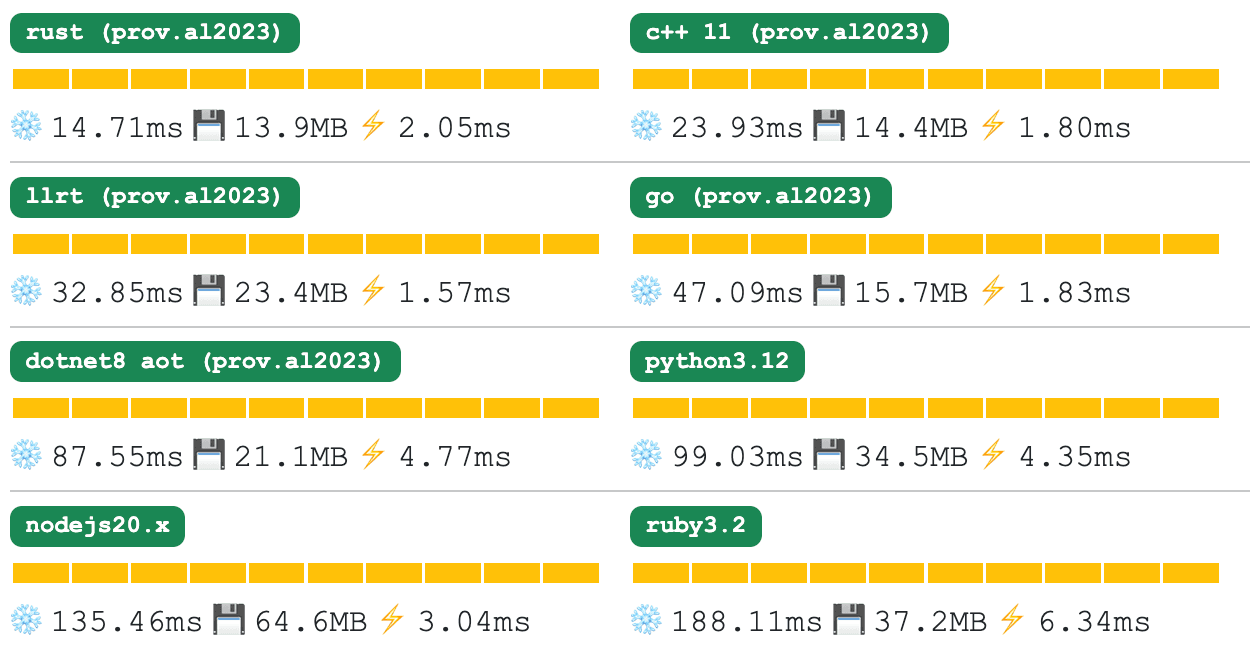

Serverless Timings

https://maxday.github.io/lambda-perf/

As we can see, Python Node and Ruby cold starts are not the best ones even for very simple applications. But more importantly, the benchmarks are just tracking “base” usage of those languages (that is: a very simple JS/python/ruby file), not complex ones like a full Django app or WordPress.

In more complex apps, the difference becomes noticeable. For example, some developers are experimenting with adding the pyc crates into the deployed apps, to improve cold starts in AWS by at least 20%.

Unfortunately, the same strategy can’t be done for PHP’s opcache or Javascript runtimes without pushing this optimization effort onto the developer, or the language VM developer (for example, Amazon launched LLRT as a way to fix the cold-start problems in JS environments).

Instaboot: speeding up cold starts

Do you remember the Hybernation process introduced in Windows that let you shut down your computer and then resume it from the previous state once you power it up? Instaboot works in a similar way, but fully optimized for serverless apps. Rather than booting up the server from scratch each time we do a cold start, Instaboot saves the state of the program right after startup, to then resume the first cold request based on that previous saved state.

What is special about Wasm and Wasmer is its fully sandboxed operating environment where everything is tightly controlled at key integration points:

  • WASIX system calls
  • Wasm memory
  • Wasm code execution

When one breaks these sandbox components down there appears a reoccurring theme that brings new opportunities…. determinism!

Wasmer essentially runs an emulated OS that executes a deterministic state machine. Most of the system calls are deterministic (except for random_get, clock_time_get, and active sockets). Wasm memory references and hence memory are also deterministic. The Wasm compiled bytecode also remains highly portable thus, when compiled on one machine it will behave the same on another which is perfect for deterministic behavior.

These core design goals of WebAssembly are what makes it unique, they came at a price to raw performance when Wasm dropped on the scene with many articles and comparisons that show that disparity, but it is those very design features that allow us to begin to claw back that lost performance while remaining free from what shackles of fixed locality that other architectures suffer today.

Do you want to try Instaboot today?

Here are the settings that we have applied to speed up cold-starts in WordPress by 175x in Wasmer Edge, just add this into your app.yaml:

capabilities:
  instaboot:
    requests:
      - path: /
      - path: /wp-admin/

Instaboot is in beta while we make the service robust. PHP and WinterJS applications have been intensely tested, but programming languages such as Python might have some edges that are not yet fully polished.

We have created extensive documentation on how to use Instaboot here: https://docs.wasmer.io/edge/learn/instaboot

Instaboot: Under the Hood

Instaboot uses the recently released journaling functionality in the Wasmer runtime to record the OS system calls, thread stacks, and memory changes during a warm-up phase and store them on disk. Later if the same instance is queried again the journal is replayed skipping this boot-up phase.

Note: In order to use the snapshot functionality the Wasm process must be compiled with the asyncify modifications, this can be done using the wasm-opt tool and the --asyncify flag.

Instaboot Phase

  1. Start an instance
  2. Process the instaboot requests indicated in app.yaml
  3. Replay the journal into the bootstrapped instance
  4. Restore the threads and memory to the last snapshot in the journal
  5. Process the request as per normal

How fast is Instaboot?

It’s fast… really fast.

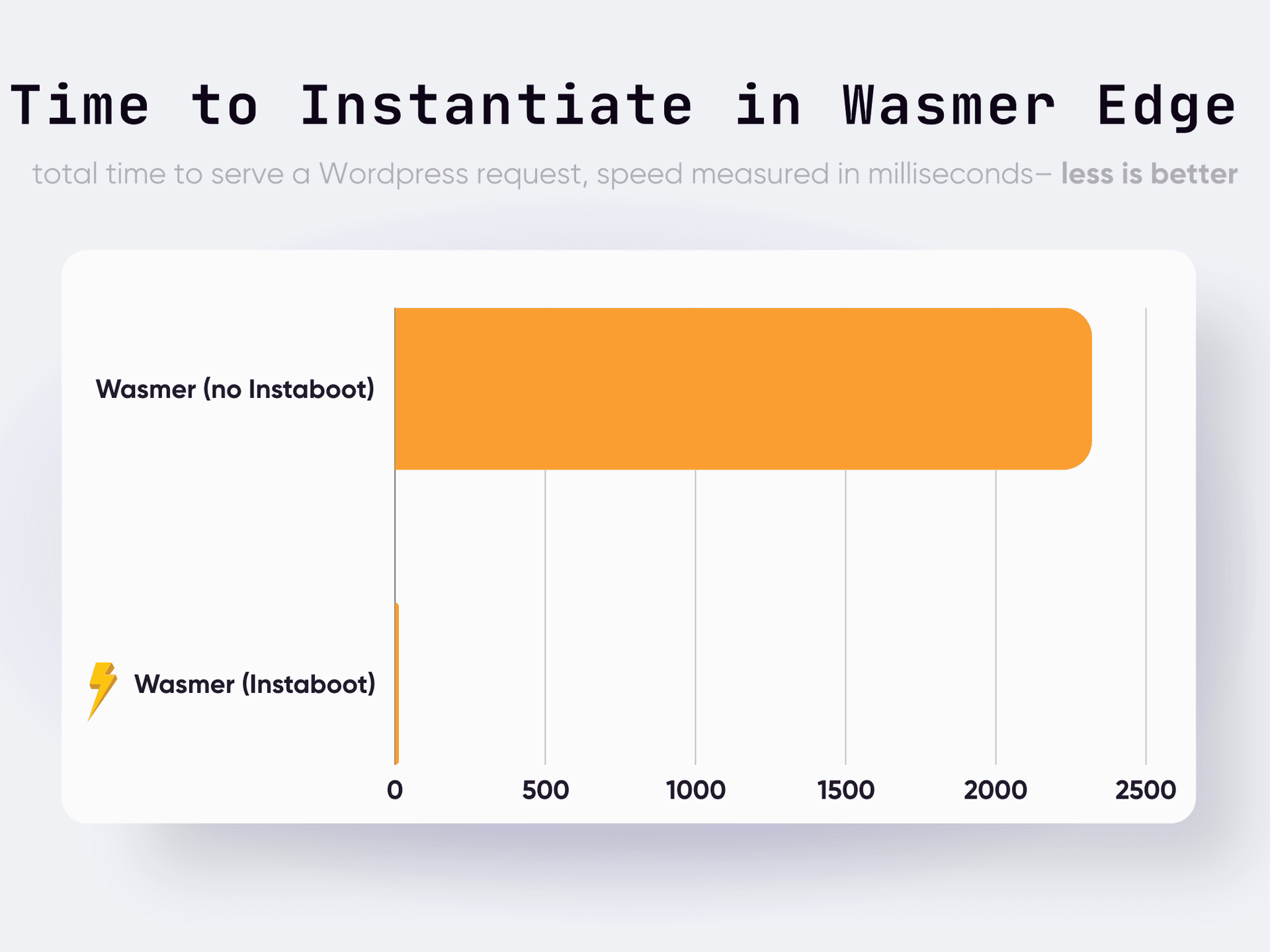

Wasmer Edge Normal vs Instaboot

Below is a full-sized PHP site loaded in Edge with some key stages in the request processing shared with the time spent there - given this is a cold start there is only a single request and it's predictably slow due to the cost of using WASM.

redirect(wiring)          -> redirect(hit)           [1ms]
runner(build-env)         -> runner(load-wasm-bytes) [22ms]
runner(load-module)       -> runner(fs)              [28ms]
runner(spawn-main-thread) -> runner(booting)         [14ms]
runner(executing(wasi))   -> trailers(status=200 OK) [2320ms]
trailers(status=200 OK)   -> finished(status=200)    [4ms]

That’s over 2320ms spent in WebAssembly land, yikes! The cause of this is PHP spends quite some time parsing and compiling pages into PHP opcache records and cached PHP page files (WordPress uses more than 300 files when rendering the base blog page), and it does that using Wasm compiled code running in the Wasmer runtime. Now what’s new is that while it does that it builds an Instaboot journal in the background for future requests.

Now let's look at this again after a restart of the Edge instance but this time it can use the previously generated Instaboot journal…

redirect(wiring)          -> redirect(hit)           [1ms]
runner(build-env)         -> runner(load-wasm-bytes) [26ms]
runner(load-module)       -> runner(fs)              [30ms]
runner(spawn-main-thread) -> runner(booting)         [13ms]
runner(executing(wasi))   -> trailers(status=200 OK) [13ms]
trailers(status=200 OK)   -> finished(status=200)    [2ms]

After the bootstrap, only 13ms is spent in WASM land thus the other loss areas now become the dominant contributor to start-up latency. For that 13ms of WASM work itself that renders the PHP page, that’s 178 times faster than a normal startup!

We have unlocked many more improvements that we will see in future releases of Wasmer and Wasmer Edge.


Many possibilities spin off from this capability, but what we are most excited by is that we are in new territory here. Finally, the hard work of creating a deterministic sandbox around real apps on servers and our commitment to WASM is paying off - super exciting times ahead!.

But for now, know that we are committed to serving your apps at incredibly affordable prices and with an awesome experience.

backgroundruntime
Try Instaboot now!

Use the Wordpress template above to deploy your first Instaboot app on Wasmer Edge, or follow the Instaboot guide.
